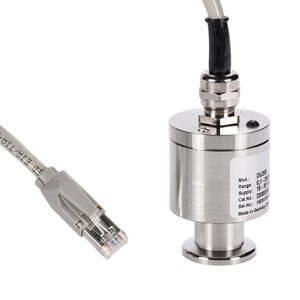

DU 200 - Absolute Pressure Sensor - DN 16 ISO-KF

Part Number: 230500V01

DI/DU

Excel through a high overload response as well as excellent corrosion & vibration resistance.

Features and Benefits

  • Rugged sensor with IP54 rating making it suitable for harsh environments
  • Very compact: just one sensor needed
  • Relative measurement option for load lock applications
  • Utilizes either capacitive or Piezo based sensor dependent on model
  • Measurements from 2000 mbar to 0.1 mbar

General Product Information

Accessories / Scope of Supply Linear sensor DU complete with 5 m long connection cable and connecting plug (FCC68)
Dimension Height 0.075
Dimension Width 0.040
IP Rating IP54
Supply Frequency DC Voltage
Supply Voltage DC 12-30V
Weight 0.360
Dimension Comments The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models.
Pressure Measurement Range /

Classification

Product Pressure Range Rough Vacuum: 1000 mbar - 1 mbar
Principle Of Measurement Piezoelectric vacuum gauge
Capacitance diaphragm vacuum gauges

Environmental Conditions

Temperature Ambient Operation Max 60.00
Temperature Ambient Operation Min 0.000

Connectivity - Communication Interface

Communication Interfaces Customer 0-10 V (analog output - linear)

Material of Construction

Material Seal FFKM
