Specifications
| Connection Vacuum Inlet Flange | DN 63 ISO-K |
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Cooling Method | Water Cooling |
| Supply Voltage | 3Ph 380-480V 50/60Hz |
| Power Total Rated | 7500.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.078 |
| Pressure Ultimate | 1.00 |

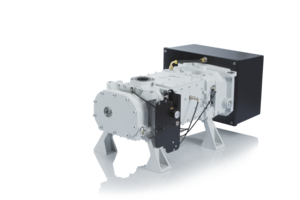

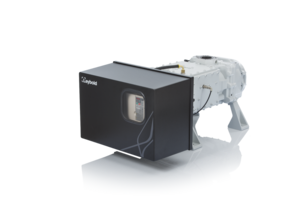

DRYVAC DV 300 - ATEX CAT 3i
DRYVAC
The benchmark for industrial applications! Meet the models in our smart DRYVAC series. The DRYVAC family offers product in a pumping speed range from 200 to 1600 m3/h. By combining these screw pumps with our RUVAC roots pump portfolio all pumping speed requirements can be met. Enjoy best-in-class performance, reliability and efficiency.
What makes top-performing pumps even more intelligent? Smart accessories. All DRYVAC models are equipped with a frequency converter and offer compatibility with a intelligent range of fieldbus protocols for maximum flexibility. This built-in frequency converter operates in conjunction with three standard sensors to monitor all electrical, thermal and mechanical components. The sensors detect the exhaust pressure, motor temperature and water outlet temperature and issue status updates and warnings when needed. Taking efficiency up a notch: with a frequency converter, DRYVAC moves up a whole class, making it the most efficient pump available. Fieldbus compatibility makes DRYVAC vacuum pumps ready for the demands of smart manufacturing. All pumps offer serial I/O solutions including a RS485 interface and support for various fieldbus protocols.
Features and Benefits
- Harshest applications ready - Hermetically sealed, several purge options, flushable
- Plug & Play - Inbuilt intelligent FC, easy networking & control, IoT ready
- Performance Driven - High and stable pumping speed
- Energy Efficiency - Low power due to rotor design and blow off valves
- Compact - Significantly smaller than all equivalent pumps
General Product Information
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Connection Vacuum Inlet Flange | DN 63 ISO-K |
| Cooling Method | Water Cooling |
| Dimension Height | 0.478 |
| Dimension Length | 1.11 |
| Dimension Width | 0.612 |
| IP Rating | IP54 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 380-480V 50/60Hz |
| Weight | 370.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 63 ISO-K | DN 40 ISO-KF (NW40) |
Performance Data
| Power at Ultimate | 4500.00 |
| Power Total Rated | 7500.00 |
| Pressure Ultimate | 1.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.078 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 5.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
- 3611003902_DRYVAC_EN_web.pdf - English - Sales Material
- 3611036902_DRYVAC_eSaver_EN_web.pdf - English - Sales Material
- 3611036903_DRYVAC_eSaver_FR_web.pdf - French - Sales Material
- 3611003903_DRYVAC_FR_Web.pdf - French - Sales Material
- 3611036901_DRYVAC_eSaver_DE_web.pdf - German - Sales Material
- 3611003901_DRYVAC_DE_web.pdf - German - Sales Material
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Cable Comms - USB interface ECODRY - serial to USB | 161820USB | - | |
| Pipe Bend 90 deg - St St DN 40 ISO-KF | 88464 | - |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| LEYBONOL LVO 210, 208L (ATEX APPROVED) | L21099 | - |
