Specifications
| Connection Vacuum Inlet Flange | DN 63 ISO-K DN 100 ISO-K |
| Connection vacuum outlet flange | DN 80 ISO-K |
| Cooling Method | Air Cooling |
| Supply Voltage | 3Ph 400V 50Hz |
| Pressure Ultimate | 1.00 |

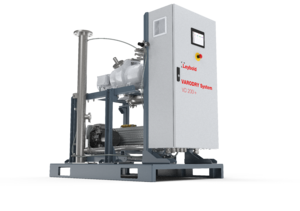

VARODRY VD 200i+- booster ready 50 Hz 400V
Part Number: 111200VDI01
General Product Information
| Connection vacuum outlet flange | DN 80 ISO-K |
| Connection Vacuum Inlet Flange |
DN 63 ISO-K
DN 100 ISO-K |
| Cooling Method | Air Cooling |
| Dimension Height | 1.50 |
| Dimension Length | 1.41 |
| Dimension Width | 0.925 |
| IP Rating | IP54 |
| Supply Frequency | 50 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 400V 50Hz |
| Weight | 450.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 63 ISO-K | DN 80 ISO-K |
Performance Data
| Power Total Rated @50Hz | 9400.00 |
| Pressure Ultimate | 1.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Storage Max | 60.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperature Ambient Storage Min | -20.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification |
Medium Vacuum Pump
Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
