Especificaciones
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | DN 16 ISO-KF (NW16) |
| Cooling Method | Refrigeración por aire (convección) |
| Supply Voltage | 1Ph 200-240V 50/60Hz |
| Power Total Rated | 600.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.011 |
| Presión final | 3.00 |

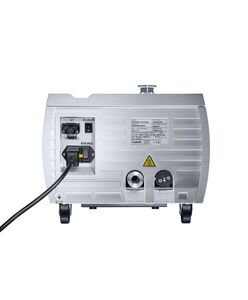

ECODRY 40 plus - 200-240V 1Ph
Numero de parte: 161040V22
ECODRY 40 plus
ECODRY plus Let’s turn workplaces into quieter spaces.
With ECODRY plus LEYBOLD offers a new range of very compact, lightweight small dry pumps ranging for 25 to 65 m3/h.
Features and Benefits
- Designed to serve – quietly: With the ECODRY plus acoustic enclosures for noise reduction are no longer required – an ECODRY plus emits half the noise of other pumps in its class.
- Robust and reliable: The ECODRY plus boasts high water-vapor tolerance and is built for utmost reliability.
- No contamination, extra-low maintenance: The ECODRY plus is extremely quiet and easy to operate – ideal for UHV labs. It offers sufficient pumping performance to back systems of several turbomolecular pumps. In addition, the clean pumping mechanism produces no contaminants. The ECODRY plus is maintenance-free for users – so scientists can concentrate on their experiments without needing to service the pump.
- Clean, mobile, and strong: The ECODRY plus fulfills the high requirements for cleanliness and provides enough pumping speed to evacuate chambers of considerable volume. Due to its high water-vapor capacity, it operates reliably, even in the case of heavy desorption from chamber walls. What’s more, the pump is lightweight and compact and can be easily moved around on wheels.
General Product Information
| Connection vacuum outlet flange | DN 16 ISO-KF (NW16) |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Refrigeración por aire (convección) |
| Dimensión de altura | 0.298 |
| Longitud de cota | 0.623 |
| Dimensión de anchura | 0.320 |
| Tasa de fuga | 1.000 × 10⁻⁶ |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 1-Ph |
| Supply Voltage | 1Ph 200-240V 50/60Hz |
| Peso | 43.00 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | DN 25 ISO-KF (NW25) | DN 16 ISO-KF (NW16) |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperatura ambiente de almacenamiento máx. | 60.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperatura ambiente de almacenamiento mín. | -20.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Bomba de vacío medio |
| Vacuum Pump Technology | Multistage Roots Pump |
Performance Data
| Power Total Rated | 600.00 |
| Presión final | 3.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.011 |
| Pressure Ultimate With Gas Ballast | 10.00 |
Operation Conditions - Limitations
| Altitud máxima | 3000.00 |
- 3610001902_ECODRYplus_web.pdf - English - Sales Material
- 3610001912_ECODRYplus_web.pdf - English - Sales Material
- 3610-0160-02-ECODRY40-65plus.pdf - English - Sales Material
- 3610001903_ECODRYplus_web.pdf - French - Sales Material
- 3610-0160-03-ECODRY40-65plus.pdf - French - Sales Material
- 3610001901_ECODRYplus_web.pdf - German - Sales Material
- 3610-0160-01-ECODRY40-65plus.pdf - German - Sales Material
- 3610-0160-21-ECODRY40-65plus.pdf - Japanese - Sales Material
- 3610-0160-11-ECODRY40-65plus.pdf - Simplified Chinese - Sales Material
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| Mounting kit ECODRY plus 25/35/45/70 | 162800A001 | - | |
| Cable Power Mains - 2m US NEMA 5-15P 125V - C19 Lock | 141103US | - | |
| Cable Power Mains - 2m UK BS 1363 - C19 Lock | 161810UK | - | |
| Cable Power Mains - 2m China/Austr Typ I - C19 Lock | 161810CN | - | |
| Cable Power Mains - 2.5m NEMA6-15P 250V - C19 Lock | 161810US | - | |
| Cable Power Mains - 2m EU CEE 7/7 - C19 Lock | 161810EU | - | |
| Blank adapter Gas ballast ECODRY plus | 161832A | - | |
| Purge Gas Adapter ECODRY plus | 161833A | - | |
| THERMOVAC TTR 91 RN - DN 16 ISO-KF | 21L1011100 | - |
