Especificaciones
| Connection Vacuum Inlet Flange | DN 16 ISO-KF (NW16) |
| Connection vacuum outlet flange | Niple de manguera de 6 mm |
| Supply Voltage | 1Ph 230V 50/60Hz |
| Presión final | 50.00 |

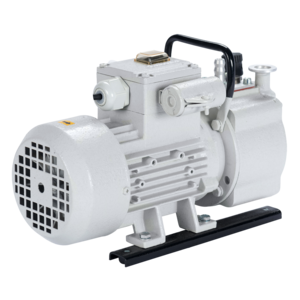

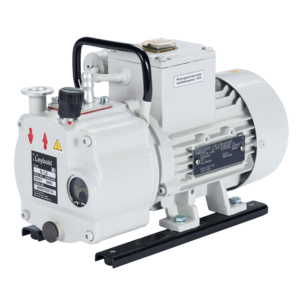

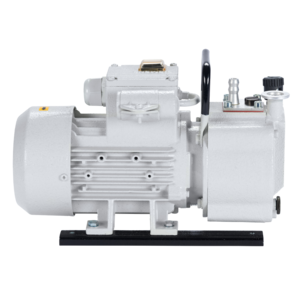

TRIVAC S 1.5 - 230V 50/60Hz
Numero de parte: 10101
Oil Rotary Vane Pumps Single-Stage
The SOGEVAC vacuum pumps are single stage oil sealed rotary vane pumps, one of the main Leybold products! Leybold is proud of its over 175 years of experience and SOGEVAC exist for over 40 years. SOGEVAC benefit of latest developments in pump technology and regular product portfolio renewal. The comprehensive range allows every customer to select the right pump for his particular needs. SOGEVAC stands out for reliability and sustainability and provides years of exceptional performance.
General Product Information
| Connection vacuum outlet flange | Niple de manguera de 6 mm |
| Connection Vacuum Inlet Flange | DN 16 ISO-KF (NW16) |
| Dimensión de altura | 0.160 |
| Longitud de cota | 0.300 |
| Dimensión de anchura | 0.155 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 1-Ph |
| Supply Voltage | 1Ph 230V 50/60Hz |
| Peso | 8.80 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | DN 16 ISO-KF (NW16) | Niple de manguera de 6 mm |
Performance Data
| Power Total Rated @50Hz | 250.00 |
| Power Total Rated @60Hz | 250.00 |
| Presión final | 50.00 |
| Velocidad de bombeo, aire y nitrógeno 50 Hz | 5.278 × 10⁻⁴ |
| Velocidad de bombeo, aire y nitrógeno 60 Hz | 6.389 × 10⁻⁴ |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
Classification
| Dry or Wet Pump | Wet |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Oil Rotary Vane Pump Single-Stage |
