Especificaciones
| Connection Vacuum Inlet Flange | DN 100 ISO-K |
| Connection vacuum outlet flange | DN 100 ISO-K |
| Cooling Method | Refrigeración por aire |
| Supply Voltage | 3Ph 200/230/400 50 Hz 3Ph 200-208/265/460 60 Hz |
| Power Total Rated | 4000.00 |

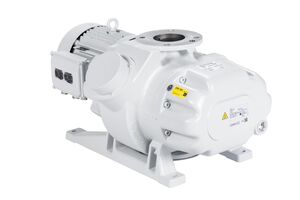

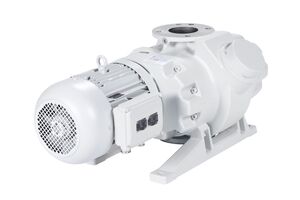

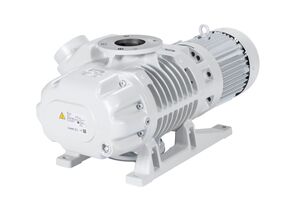

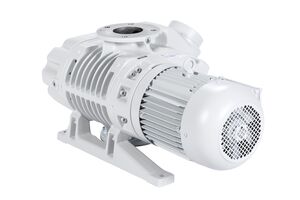

RUVAC WSU 1001 B2/100 ISO-K
Numero de parte: 11743
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 11743 | |
| 11843 |
General Product Information
| Connection vacuum outlet flange | DN 100 ISO-K |
| Connection Vacuum Inlet Flange | DN 100 ISO-K |
| Cooling Method | Refrigeración por aire |
| Dimensión de altura | 0.532 |
| Longitud de cota | 0.885 |
| Dimensión de anchura | 0.370 |
| IP Rating | IP20 |
| Tasa de fuga | 1.000 × 10⁻⁵ |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage |
3Ph 200/230/400 50 Hz
3Ph 200-208/265/460 60 Hz |
| Peso | 233.00 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | DN 100 ISO-K | DN 100 ISO-K |
Performance Data
| Power Total Rated | 4000.00 |
| Power Total Rated @50Hz | 4000.00 |
| Power Total Rated @60Hz | 4400.00 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Mechanical Booster Pump |
