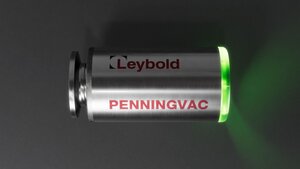

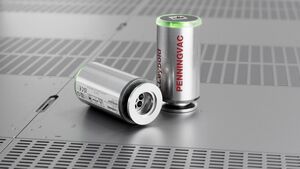

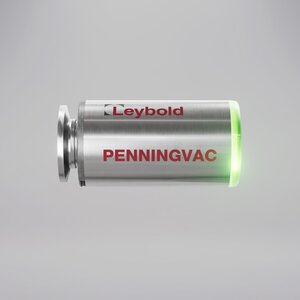

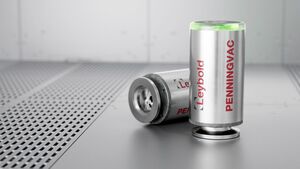

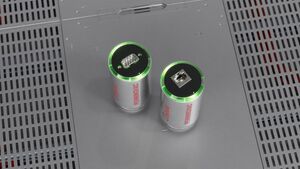

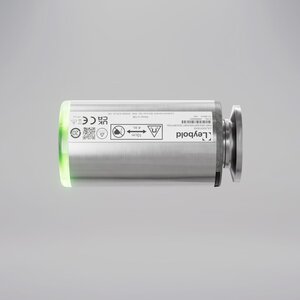

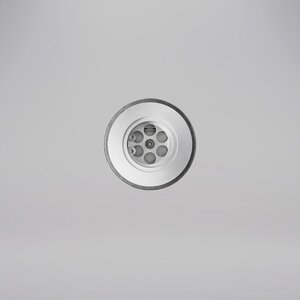

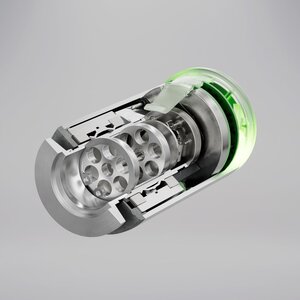

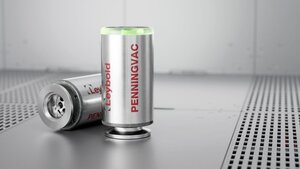

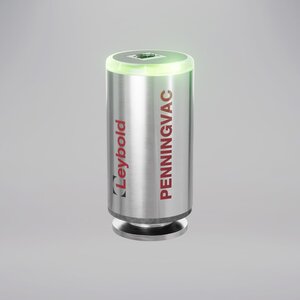

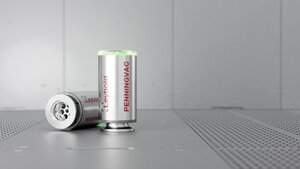

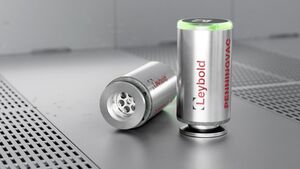

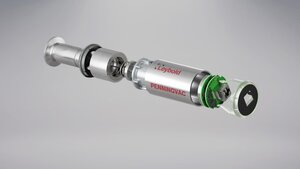

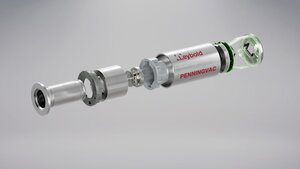

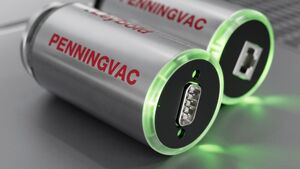

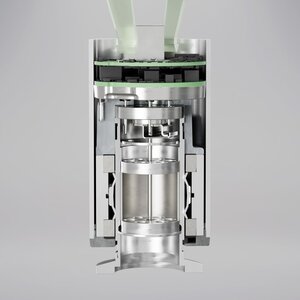

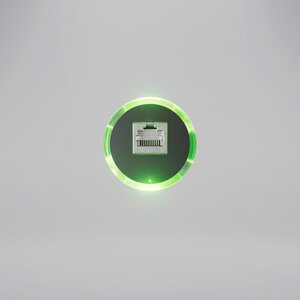

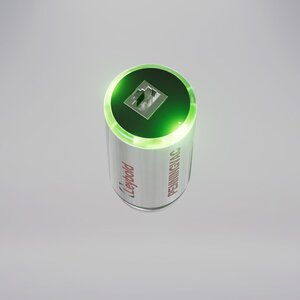

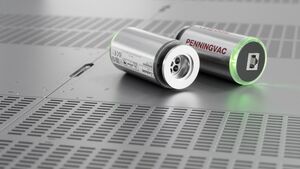

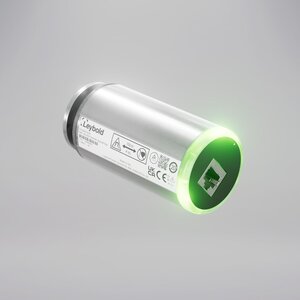

PENNINGVAC PTR 90 RN - DN 25 KF
Part Number: 23L0021100
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Vacuum Inlet Flange | Dimension Length | Weight |
|---|---|---|---|---|
| 23L0021100 | DN 25 ISO-KF (NW25) | 0.092 | 0.350 | |
| 23L0031100 | DN 40 ISO-KF (NW40) | 0.092 | 0.380 | |
| 23L0041100 | DN 40 CF (2.75") | 0.098 | 0.630 |
PENNINGVAC PTR

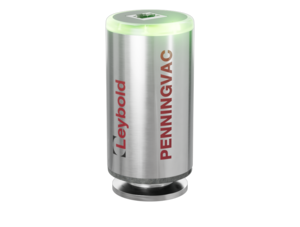

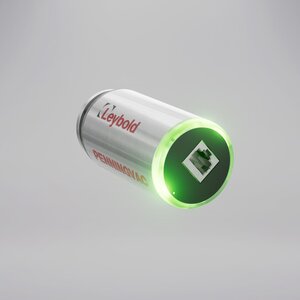

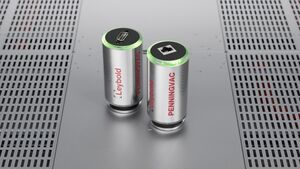

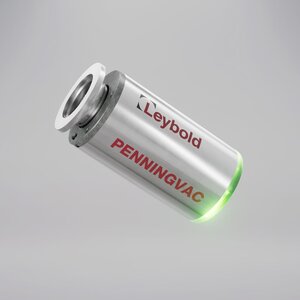

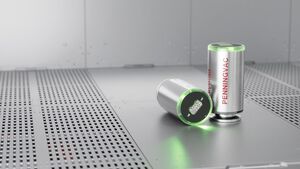

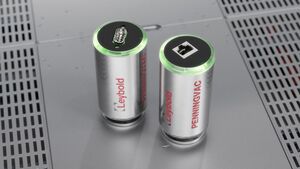

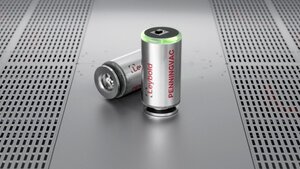

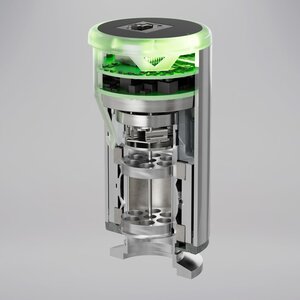

PENNINGVAC PTR - Leybold Vacuum is proud to introduce its latest update of the cold-cathode gauge technology. With the PTR 90 RN wide range and PTR 225 RN pure cold cathode you get the latest technology fitting within the same family characteristics as our latest pirani gauge TTR 91 RN.
Features and Benefits
- Easy monitoring and control
- Robust
- Flexibility
- Easy serviceability
- In-house manufacturing from the expert
- 2 interfaces to choose from
- Reduced footprint
- Compatibility
- Adaptive led pressure indication
- Wide range power supply
General Product Information
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Dimension Height | 0.045 |
| Dimension Length | 0.092 |
| Dimension Width | 0.045 |
| IP Rating | IP40 |
| Supply Frequency | DC Voltage |
| Supply Voltage | DC 15-48V |
| Weight | 0.350 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Classification
| Product Pressure Range |
High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar
Medium Vacuum: 1 mbar - 1·10⁻³ mbar Rough Vacuum: 1000 mbar - 1 mbar |
| Principle Of Measurement | Cold-cathode Pirani combination vacuum gauge (IM inverted magnetron) |
Performance Data
| Measurement Uncertainty |
50 to 1x10-2 mbar ±15%
1x10-2 to 1x10-8 mbar ±30% |
| Power consumption Max String | 4W |
| Pressure Measurement Min | 1.000 × 10⁻⁷ |
| Pressure Measurement Max | 1.000 × 10⁵ |
Environmental Conditions
| Temperature Ambient Operation Max | 50.00 |
| Temperature Ambient Storage Max | 70.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperature Ambient Storage Min | -30.00 |
Material of Construction
| Material Filament | Tungsten/Rhenium |
| Material Body | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 |
| Material Exposed to Vacuum | Stainless Steel 316L and 304L, Tungsten, Glass, Molybdenum, Trace of Nickel and Nickel iron |
Connectivity - Communication Interface

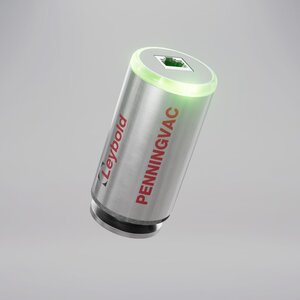

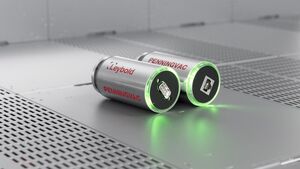

| Communication Interface Protocol | 1.4 - 8.6 V log linear with pressure PTR 90 RN |
| Communication Interfaces Customer | 0-10 V (analog output - linear) |
| Connection electrical comms interface connector | RJ45 (FCC 68) - Female |
| Status Indicator | LED Light Ring |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.500 × 10⁵ |
| Pressure Inlet Max Overpressure | 1.000 × 10⁶ |
| Temperature Baking Max (Elec. Removed) | 150.00 |
| Temperature Baking Max | 50.00 |
Variants
| Variant Gauges | PTR 90 RN (linear 0-10V output) |
- 301106082_002_Instructions.pdf - English - Instructions
- 301106080_002_Instructions.pdf - English - Instructions
- 3610-0361-02_PENNINGVAC-PTR.pdf - English - Sales Material
- 3610-0191-02-Vacuum-Measurement.pdf - English - Sales Material
- 3610 0191 02 Vacuum Measurement.pdf - English - Sales Material
- 301106082_003_Instructions.pdf - French - Instructions
- 301106080_003_Instructions.pdf - French - Instructions
- 3610-0361-03_PENNINGVAC-PTR.pdf - French - Sales Material
- 301106082_001_Instructions.pdf - German - Instructions
- 301106080_001_Instructions.pdf - German - Instructions
- 3610-0361-01_PENNINGVAC-PTR.pdf - German - Sales Material
- 3610-0361-04_PENNINGVAC-PTR.pdf - Italian - Sales Material
- 3610-0361-21_PENNINGVAC-PTR.pdf - Japanese - Sales Material
- 301106082_011_Instructions.pdf - Simplified Chinese - Instructions
- 301106080_011_Instructions.pdf - Simplified Chinese - Instructions
- 3610-0361-11_PENNINGVAC-PTR.pdf - Simplified Chinese - Sales Material
- 3610-0361-06_PENNINGVAC-PTR.pdf - Spanish (European) - Sales Material
- 3610-0361-15_PENNINGVAC-PTR.pdf - Traditional Chinese - Sales Material
