Specifications
| Connection Vacuum Inlet Flange | DN 80 |
| Connection vacuum outlet flange | DN 80 |
| Cooling Method | Air Cooling |
| Supply Voltage | 3Ph 460V 60Hz |
| Power Total Rated | 13000.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.167 |
| Pressure Ultimate | 100.00 |

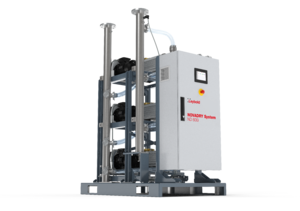

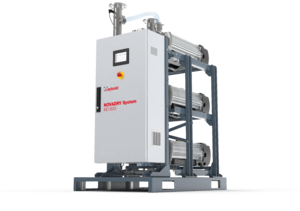

NOVADRY ND 600 i - 60Hz 460V
Part Number: 111600NDI02
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 111600NDI01 | |
| 111600NDI02 |
General Product Information
| Connection vacuum outlet flange | DN 80 |
| Connection Vacuum Inlet Flange | DN 80 |
| Cooling Method | Air Cooling |
| Dimension Height | 1.98 |
| Dimension Length | 1.41 |
| Dimension Width | 0.925 |
| IP Rating | IP54 |
| Supply Frequency | 60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 460V 60Hz |
| Weight | 997.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 80 | DN 80 |
Performance Data
| Capacity Water Vapour | 3.861 × 10⁻³ |
| Power Total Rated | 13000.00 |
| Power Total Rated @60Hz | 13000.00 |
| Pressure Ultimate | 100.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.167 |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Temperature Inlet Gas Max | 20.00 |
| Pressure Absolute Outlet Continous Max | 20000.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Storage Max | 60.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperature Ambient Storage Min | -20.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification |
Medium Vacuum Pump
Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
