Especificaciones
| Connection Vacuum Inlet Flange | DN 160 ISO-K |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Refrigeración por aire (convección) Refrigeración por aire (forzada - ventilador) Refrigeración por agua |
| Supply Voltage | DC > 50V |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.720 |
| Presión final | 7.000 × 10⁻⁷ |
TURBOVAC 850 iR - DN 160 ISO-K
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 840071A00 | |
| 840081A00 |
TURBOVAC i/iX
TURBOVAC i is a well-proven turbomolecular pump platform ranging from 90 to 1450 l/s. TURBOVAC i comes with the latest hybrid bearing design offering a permanent magnet upper bearing paired with an oil-free lower mechanical bearing offering the cleanest high vacuum conditions.
With TURBOVAC i we offer variants covering UHV (Ultra High Vacuum), throughput IND (Industrial) as well as iR (radiation robust) variants with remote electronics. TURBOVAC i pumps are available with a compact interface offering the control of up to two accessories, basic RS485, USB and DIGITAL I/O control. The TURBOVAC i series also offers the full spectrum of field bus support. The universal connection called "Anybus" enables communication via Profibus, Ethernet IP, ProfiNET as well as EtherCAT through selectable modules.
TURBOVAC iX also offers the Anybus interface, the ability to control your fore vacuum pump, and up to 6 accessories, a gauge interface turning the pump into a full vacuum control solution. Along with single inlet pumps, we offer a wealth of multi-inlet, cartridge pumps, and customized products via our Customer Focused Engineering team - please come and talk to our sales teams.
TURBOVAC i pumps, in general, come stand-alone - the suitable power supply unit, comms/power cables, and cooling options need to be ordered separately. TURBOVAC 1350, 1450 and the 850, 950 IND variants always come already equipped with a water cooling block.
TURBOVAC 850 iR
The TURBOVAC iR turbomolecular vacuum pump range has been developed to fulfil the requirements of demanding applications where high ionizing radiation is surrounding while providing the needed vacuum. Thanks to this exceptional tolerance against radiation the performance of the TURBOVAC iR pump is assured... and so is the operation of your application. With TURBOVAC iR you get the right solution for all kinds of remote operation.

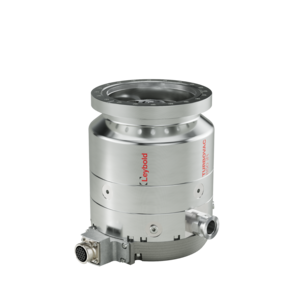

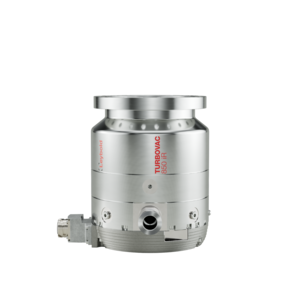

TURBOVAC 850 iR - DN 160 ISO-K
The pump can be operated in any orientation. This product comes without any additional cooling device - an air cooler or a water cooling block need to be ordered separately. It is specially designed to remotely operate in a challenging application where high ionizing radiation is present. The controller TURBO.DRIVE 500e can drive this TURBOVAC iR family member on distances of up to 1000 m with minimal performance losses.
Features and Benefits
- Radiation resistance up to 1 MGray - Thanks to this exceptional tolerance against radiation the performance of the TURBOVAC iR pump is assured... and so is the operation of your application.
- Remote operation - With TURBOVAC iR you get the right solution for all kinds of remote operations. The controller TURBO.DRIVE 500e can drive any of the TURBOVAC iR family members on distances of up to 500 m, and this with minimal performance losses.
- Long service lifetime - The TURBOVAC iR pumps offer a long service lifetime: you can count on a maintenance-free period from 4 and up to 5 years.
- TURBO.DRIVE 500e - A powerful and compact solution to operate the TURBOVAC iR series products at any required distance. Besides driving the pump, the TURBO.DRIVE 500e controller can also independently control two TURBOVAC i pumps and standard accessories such as cooling fans or valves. Drive remote electronics with on/off function and status LEDs, LEYASSIST software option via USB port.
General Product Information
| Accessories / Scope of Supply | TURBOVAC i pumps come stand-alone - the suitable power supply unit, comms/power cables, and cooling options need to be ordered separately. IND industrial variants come with an equipped water cooling unit and are water cooling only. |
| Connection Power | Conector remoto 19 PINES reforzado por radiación - Hembra |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Connection Vacuum Inlet Flange | DN 160 ISO-K |
| Cooling Method |
Refrigeración por aire (convección)
Refrigeración por aire (forzada - ventilador) Refrigeración por agua |
| Dimensión de altura | 0.287 |
| Longitud de cota | 0.255 |
| Dimensión de anchura | 0.241 |
| IP Rating | IP40 |
| Supply Frequency | Tensión CC |
| Supply Voltage | DC > 50V |
| Peso | 14.60 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | DN 160 ISO-K | DN 25 ISO-KF (NW25) |
| ProductCertification |
CE
UL CSA |
| connectionPurgeGasBallastVentConnector |
1/8" BSPP (or G 1/8") Female
1/8" BSPP (or G 1/8") Female |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperatura ambiente de almacenamiento máx. | 70.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperatura ambiente de almacenamiento mín. | -15.00 |
| Magnetic Field Resistance Max (covering worst direction - come and consult us for more details) | 9.000 × 10⁻³ T |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar |
| High / Medium / Rough Vacuum Classification | Bomba de alto vacío |
| Vacuum Pump Technology | Turbomolecular Pump - hybrid bearing oil free |
Performance Data
| Relación de compresión de nitrógeno en aire | 1.000 × 10¹¹ |
| Relación de compresión de helio | 1.000 × 10⁸ |
| Relación de compresión de hidrógeno | 4.000 × 10⁶ |
| Presión final | 7.000 × 10⁻⁷ |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.720 |
| Velocidad de bombeo, argón | 0.655 |
| Velocidad de bombeo, helio | 0.850 |
| Velocidad de bombeo, hidrógeno | 0.755 |
| Tiempo de rampa ascendente | 270.00 |
| Velocidad de rotación nominal | 820.00 |
| Comentario de rendimiento | The compression of a TMP is a value describing how good the design can compress a gas type at special conditions. Compression data is measured only using the CF flange variants. The values are stated for all family members. For some pump classes we are stating different pumping speeds ISO > CF flange as small differences in geometry influence their performance leading to a difference >5%. |
| Gas Throughput Air Nitrogen Max | 0.600 |
| Gas Throughput Helium Max | 1.20 |
| Rendimiento máx. de gas hidrógeno | 1.50 |
| Gas Throughput Argon Max | 0.360 |
| Pressure Backing Max | 1500.00 |
| Relación de compresión de argón | 1.000 × 10¹¹ |
Connectivity - Communication Interface
| Communication Interface Protocol | Ninguno - no hay interfaz de comunicación en la propia bomba |
| Connection electrical comms interface connector | Conector remoto 19 PINES reforzado por radiación - Hembra |
Variants
| Installation | Cualquier orientación |
| variantTmpPerformanceModel | TURBOVAC iR - Funcionamiento remoto, resistente a la radiación |
Operation Conditions - Limitations
| Flujo de agua de refrigeración mín. | 1.667 × 10⁻⁵ |
| Temperatura máx. del agua de refrigeración | 35.00 |
| Temperatura mín. del agua de refrigeración | 15.00 |
| Flujo de agua de refrigeración máx. | 3.000 × 10⁻⁵ |
| Pressure Permissible Cooling Water - Min and Max |
4.000 × 10⁵
4.000 × 10⁵ |
