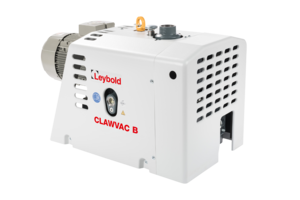

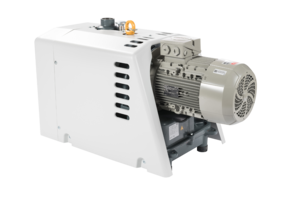

CLAWVAC 065 - 300 B
CLAWVAC 065 - 300 B
CLAWVAC 065 - 300 B
CLAWVAC 065 - 300 B

Especificaciones

Connection Vacuum Inlet Flange 1 1/4" BSPT (Rc) Hembra 1 1/4" NPT Hembra
Connection vacuum outlet flange 1 1/4" BSPT (Rc) Hembra 1 1/4" NPT Hembra
Cooling Method Refrigeración por aire
lubricantProductDefault GL+ Xpand 150
Supply Voltage Eje libre sin motor
Presión final 5000.00

CLAWVAC CP 150B W/O MOTOR 50HZ

Numero de parte: 10780150V21

0 En stock

Haga clic para ver la disponibilidad

Variante

Explore la gama de variantes que se indican a continuación para comparar el producto

Short Description Numero de parte
CLAWVAC CP 150B 400V 50HZ 3PH
10780150V03
CLAWVAC CP 150B W/O MOTOR 50HZ
10780150V21
Detalles del producto

Dry Claw Pumps

Vacuum dry claw pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress a gas, creating a vacuum. These pumps are oil-free, ensuring clean and maintenance-free operation.

CLAWVAC B

The CLAWVAC B series from Leybold Vacuum is a robust and efficient line of oil-free dry claw pumps designed for demanding industrial applications. These pumps feature stainless steel claws and a corrosion-resistant pump chamber, making them ideal for handling particle and vapour-contaminated gases.

Features and Benefits

  • Harshest Applications Ready - Built-in corriosion resistance
  • Completely cleanable
  • Segregated gearbox design avoids oil contamination of the process
  • Cooled and designed to guarantee the highest uptime

Características del producto

General Product Information

Connection vacuum outlet flange 1 1/4" BSPT (Rc) Hembra
1 1/4" NPT Hembra
Connection Vacuum Inlet Flange 1 1/4" BSPT (Rc) Hembra
1 1/4" NPT Hembra
Cooling Method Refrigeración por aire
Dimensión de altura 0.538
Longitud de cota 0.915
Dimensión de anchura 0.409
IP Rating IP54
Supply Frequency 50 Hz
Supply Voltage Eje libre sin motor
Peso 148.00
Comentarios de Dimensión The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models.
Conexión Brida de Entrada / Salida 1 1/4" BSPT (Rc) Hembra | 1 1/4" BSPT (Rc) Hembra
motorEfficiencyClass IE3

Lubricants

lubricantProductDefault GL+ Xpand 150

Performance Data

Power Total Rated @50Hz 0.000
Presión final 5000.00
Displacement @50Hz Max 0.042
Displacement @60Hz Max 0.051

Operation Conditions - Limitations

Capacidad de aceite máx. 7.000 × 10⁻⁴
Pressure Absolute Inlet Continous Max 1.050 × 10⁵
Temperatura máx. del gas de entrada 40.00
Pressure Absolute Outlet Continous Max 1.013 × 10⁵

Environmental Conditions

Temperatura ambiente de funcionamiento máx. 40.00
Temperature Ambient Operation Min 0.000

Classification

Dry or Wet Pump Dry
Product Pressure Range Rough Vacuum: 1000 mbar - 1 mbar
High / Medium / Rough Vacuum Classification Rough Vacuum Pump
Vacuum Pump Technology Dry Claw Pump

Material of Construction

Material of Construction Grey Cast iron, Stainless steel
materialRotor Acero Inoxidable 1.4021 / X20Cr13
materialStator Hierro fundido GJL200
