Especificaciones
| Connection Vacuum Inlet Flange | DN 16 ISO-KF (NW16) |
| Connection vacuum outlet flange | DN 16 ISO-KF (NW16) |
| Supply Voltage | 1Ph 100-115V/210-230V 50Hz 1Ph 100-115V/210-230V 60Hz |
| Power Total Rated | 370.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 1.167 × 10⁻³ |
TRIVAC D 4 B - 1Ph Dual-Voltage-Motor
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 11245 | |
| 11246 | |
| 140081 |
Oil Rotary Vane Pumps Two-Stage
Leybold TRIVAC & NEO D oil sealed double stage vane pumps are well known and being used in all areas of vacuum engineering and are equally suited for both industrial production and research applications. The TRIVAC & NEO D pumps, used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots vacuum pumps or high vacuum pumps, have the ability of pumping down from the atmosphere.
TRIVAC B and BCS
The TRIVAC B pump excels with a high vacuum performance by delivering a low ultimate pressure and high water vapor tolerance with an integrated gas ballast. With a low noise level and low vibration, TRIVAC B pumps do not add to the noise in your working environment. The well-proven robust design with low thermal losses and air-cooled design makes the TRIVAC B pumps portable and compact. A comprehensive range of accessories and variants are available to offer a complete solution to meet the requirements of your applications

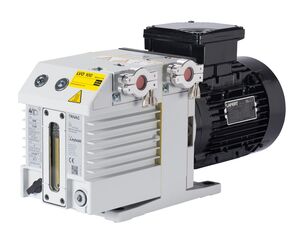

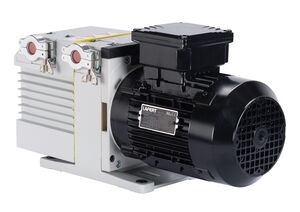

TRIVAC D 4 B
TRIVAC D 4 B is a recognized top notch product with an excellent quality & reliability track record. It impresses with its installed base and longevity!
Features and Benefits
- Process control: Unmatched ultimate pressure
- Peace of use: Integrated gas ballast for High water vapor tolerance
- Process safety: Low oil back streaming thanks to Anti-suckback valve controlled via the oil pressure
- Up-time & reliability: Built-in oil gear pump for lubrication
General Product Information
| Connection vacuum outlet flange | DN 16 ISO-KF (NW16) |
| Connection Vacuum Inlet Flange | DN 16 ISO-KF (NW16) |
| Dimensión de altura | 0.265 |
| Longitud de cota | 0.458 |
| Dimensión de anchura | 0.162 |
| IP Rating | IP54 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 1-Ph |
| Supply Voltage |
1Ph 100-115V/210-230V 50Hz
1Ph 100-115V/210-230V 60Hz |
| Peso | 18.70 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | DN 16 ISO-KF (NW16) | DN 16 ISO-KF (NW16) |
Performance Data
| Power Total Rated | 370.00 |
| Power Total Rated @50Hz | 570.00 |
| Power Total Rated @60Hz | 660.00 |
| Pressure Water Vapour Max | 3000.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 1.167 × 10⁻³ |
| Velocidad de bombeo, aire y nitrógeno 50 Hz | 1.167 × 10⁻³ |
| Velocidad de bombeo, aire y nitrógeno 60 Hz | 1.389 × 10⁻³ |
| Nominal Rotational Speed 50Hz | 25.00 |
| Nominal Rotational Speed 60Hz | 30.00 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
Operation Conditions - Limitations
| Altitud máxima | 1000.00 |
Classification
| Dry or Wet Pump | Wet |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Oil Rotary Vane Pump Two-Stage |
- GA01201_002_Instructions.pdf - English - Instructions
- P60102798_002_Instructions.pdf - English - Instructions
- 3611006802_TRIVAC_B_EN_web.pdf - English - Sales Material
- GA01201_003_Instructions.pdf - French - Instructions
- P60102798_003_Instructions.pdf - French - Instructions
- GA01201_001_Instructions.pdf - German - Instructions
- P60102798_001_Instructions.pdf - German - Instructions
- P60102798_012_Instructions.pdf - Japanese - Instructions
- 3611006821_TRIVAC_B_JP_web.pdf - Japanese - Sales Material
- 3611006811_TRIVAC_B_ZH-CN_web.pdf - Simplified Chinese - Sales Material
- 3611006806_TRIVAC_B_ES_web.pdf - Spanish (European) - Sales Material
- 3611006836_TRIVAC_B_ZH-TW_web.pdf - Traditional Chinese - Sales Material
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| EXHAUST FILTER AF 4-8 | 18906 | - | |
| EXHAUST FILTER AF 8 | 19050 | - | |
| EXHAUST FILTER WITH OIL RETURN AR 4-8 | 18920 | - | |
| Filtertopf FH 16 mit DN16KF-Anschluß | 140116T | - | |
| TRAP CONDENSATE AK4/8 DN 16 KF | 18806 | - | |
| TAP OIL DRAIN TRIVAC PUMPS | 19090 | - | |
| Screw-in Flange - St St DN 16 ISO-KF / M16 x 1.5 | 16840V01 | - | |
| OIL FILTER SYSTEM OF 4-25 | 10191 | - | |
| OIL FILTER SYSTEM CF 4-25 | 10196 | - | |
| POWERSUPPLY CABLE EUROSCHUKO | E20081091 | - |
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| SMALL MAINTEN. KIT (EXCL.OIL) S/D4B | EK110002628 | - |
