Especificaciones
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Refrigeración por aire |
| Supply Voltage | 1Ph 230V 50/60Hz |
| Power Total Rated | 750.00 |
| Presión final | 0.500 |

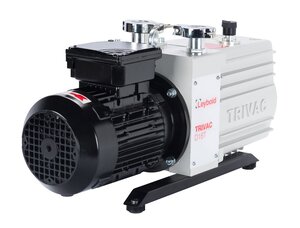

TRIVAC D 16 T - 1Ph 230V 50/60Hz Motor LVO100
Numero de parte: 31256TE
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 31251TE | |
| 31256TE |
Oil Rotary Vane Pumps Two-Stage
Leybold TRIVAC & NEO D oil sealed double stage vane pumps are well known and being used in all areas of vacuum engineering and are equally suited for both industrial production and research applications. The TRIVAC & NEO D pumps, used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots vacuum pumps or high vacuum pumps, have the ability of pumping down from the atmosphere.
General Product Information
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Refrigeración por aire |
| Dimensión de altura | 0.265 |
| Longitud de cota | 0.565 |
| Dimensión de anchura | 0.185 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 1-Ph |
| Supply Voltage | 1Ph 230V 50/60Hz |
| Peso | 37.00 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | DN 25 ISO-KF (NW25) | DN 25 ISO-KF (NW25) |
Performance Data
| Power Total Rated | 750.00 |
| Power Total Rated @50Hz | 750.00 |
| Power Total Rated @60Hz | 750.00 |
| Presión final | 0.500 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 45.00 |
| Temperature Ambient Operation Min | 12.00 |
Classification
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Oil Rotary Vane Pump Two-Stage |
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| TAP OIL DRAIN TRIVAC PUMPS | 19090 | - | |
| CONDENSATE TRAP AK 25 | 19063 | - | |
| EXHAUST FILTER AF 16-25 | 18911 | - | |
| TRAP CONDENSATE AK16/25 DN 25 KF | 18811 | - | |
| Pipe Bend 90 deg - Al DN 25 ISO-KF | 18437 | - | |
| Centring Ring - Al FKM O-Ring DN 25 ISO-KF | 18207 | - | |
| Clamping Ring - (ADC 12) AL DN 20/25 ISO-KF | 18342 | - |
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| LEYBONOL LVO 100, 1 LITER | L10001 | - |
