Especificaciones
| Connection Vacuum Inlet Flange | 1 1/4" BSPP (or G 1 1/4") Female |
| Connection vacuum outlet flange | 1 1/4" BSPP (or G 1 1/4") Female |
| Cooling Method | Refrigeración por aire |
| lubricantProductDefault | LEYBONOL LVO 130 |
| Supply Voltage | 3Ph 230/400V 50Hz |
| Power Total Rated | 1800.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.015 |
| Presión final | 50.00 |
SOGEVAC SV 65 B - EU without GB
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 960401V2016 | |
| 960405 | |
| 960407 |
Oil Rotary Vane Pumps Single-Stage
The SOGEVAC vacuum pumps are single stage oil sealed rotary vane pumps, one of the main Leybold products! Leybold is proud of its over 175 years of experience and SOGEVAC exist for over 40 years. SOGEVAC benefit of latest developments in pump technology and regular product portfolio renewal. The comprehensive range allows every customer to select the right pump for his particular needs. SOGEVAC stands out for reliability and sustainability and provides years of exceptional performance.
SOGEVAC B
The SOGEVAC B series of rotary vane vacuum pumps is setting new standards and offers following major characteristics such as compact design and small footprint, better ultimate pressure, very low and constant noise level in any working condition, more integrated functions, improved variant concept and specific customer configurations as well as simplified maintenance. Optimized lubrication and temperature profile allows trouble free operation also in harsh conditions while keeping unrivalled uptime. SOGEVAC B stands out with very high energy efficiency, low and nice noise level and extremely low oil carry over.

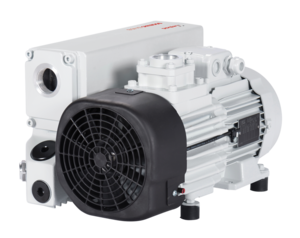

SOGEVAC SV 65 B
The SOGEVAC 65 B is widely used in many different applications. Continuous operation at all pressures possible. Many available accessories for protection & monitoring. Different oils and gas ballast sizes allow a best fit for a given application. A very compact pump for its performance thanks to the integrated motor!
Features and Benefits
- Many available oils, gas ballast types & sizes, motors
- Fit for difficult applications
- Very compact: easy to integrate and small footprint
- Variants for oxygen pumping > 23.5 %
General Product Information
| Connection vacuum outlet flange | 1 1/4" BSPP (or G 1 1/4") Female |
| Connection Vacuum Inlet Flange | 1 1/4" BSPP (or G 1 1/4") Female |
| Cooling Method | Refrigeración por aire |
| Dimensión de altura | 0.264 |
| Longitud de cota | 0.480 |
| Dimensión de anchura | 0.320 |
| IP Rating | IP55-F |
| Tasa de fuga | 1.000 × 10⁻⁴ |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 230/400V 50Hz |
| Peso | 52.00 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | 1 1/4" BSPP (or G 1 1/4") Female | 1 1/4" BSPP (or G 1 1/4") Female |
Lubricants
| lubricantProductDefault | LEYBONOL LVO 130 |
Performance Data
| Power Total Rated | 1800.00 |
| Power Total Rated @50Hz | 1500.00 |
| Power Total Rated @60Hz | 1800.00 |
| Presión final | 50.00 |
| Pressure Water Vapour Max |
3000.00
3000.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.015 |
| Velocidad de bombeo, aire y nitrógeno 50 Hz | 0.015 |
| Velocidad de bombeo, aire y nitrógeno 60 Hz | 0.020 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
Classification
| Dry or Wet Pump | Wet |
| Product Pressure Range | Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Oil Rotary Vane Pump Single-Stage |
Material of Construction
| Material of Construction | Bronze, Steel, cast iron, Aluminium, FPM (FKM), Glass, Polyamid 6.6, Filter material (Polymers, Paper),Epoxy resin and glass fibre,Copper |
