Especificaciones
| Connection Vacuum Inlet Flange | DN 100 ISO-K |
| Connection vacuum outlet flange | DN 100 ISO-K |
| Cooling Method | Refrigeración por agua Refrigeración por aire (convección) |
| Supply Voltage | 3Ph 380-460V 50/60Hz |
| Power Total Rated | 30000.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.347 |
| Presión final | 0.500 |

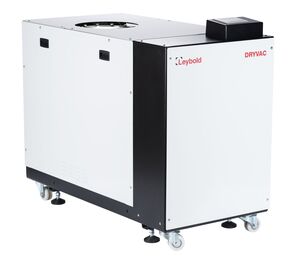

DRYVAC DV 1200-i - I/O (LVO 410)
Variante
Explore la gama de variantes que se indican a continuación para comparar el producto
| Short Description | Numero de parte |
|---|---|
| 112120V40-2 | |
| 112120V50-2 |
DRYVAC
The benchmark for industrial applications! Meet the models in our smart DRYVAC series. The DRYVAC family offers product in a pumping speed range from 200 to 1600 m3/h. By combining these screw pumps with our RUVAC roots pump portfolio all pumping speed requirements can be met. Enjoy best-in-class performance, reliability and efficiency.
What makes top-performing pumps even more intelligent? Smart accessories. All DRYVAC models are equipped with a frequency converter and offer compatibility with a intelligent range of fieldbus protocols for maximum flexibility. This built-in frequency converter operates in conjunction with three standard sensors to monitor all electrical, thermal and mechanical components. The sensors detect the exhaust pressure, motor temperature and water outlet temperature and issue status updates and warnings when needed. Taking efficiency up a notch: with a frequency converter, DRYVAC moves up a whole class, making it the most efficient pump available. Fieldbus compatibility makes DRYVAC vacuum pumps ready for the demands of smart manufacturing. All pumps offer serial I/O solutions including a RS485 interface and support for various fieldbus protocols.
Features and Benefits
- Harshest applications ready - Hermetically sealed, several purge options, flushable
- Plug & Play - Inbuilt intelligent FC, easy networking & control, IoT ready
- Performance Driven - High and stable pumping speed
- Energy Efficiency - Low power due to rotor design and blow off valves
- Compact - Significantly smaller than all equivalent pumps
General Product Information
| Connection vacuum outlet flange | DN 100 ISO-K |
| Connection Vacuum Inlet Flange | DN 100 ISO-K |
| Cooling Method |
Refrigeración por agua
Refrigeración por aire (convección) |
| Dimensión de altura | 1.10 |
| Longitud de cota | 1.34 |
| Dimensión de anchura | 0.677 |
| IP Rating | IP20 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 380-460V 50/60Hz |
| Peso | 1400.00 |
| Comentarios de Dimensión | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Conexión Brida de Entrada / Salida | DN 100 ISO-K | DN 100 ISO-K |
Performance Data
| Capacidad de vapor de agua | 0.014 |
| Power at Ultimate | 14000.00 |
| Power Total Rated | 30000.00 |
| Presión final | 0.500 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.347 |
Environmental Conditions
| Temperatura ambiente de funcionamiento máx. | 40.00 |
| Temperatura ambiente de almacenamiento máx. | 60.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperatura ambiente de almacenamiento mín. | -10.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
- 300987363_035_Instructions.pdf - Brazilian Portuguese - Instructions
- 300987363_002_Instructions.pdf - English - Instructions
- 300304403_002_Instructions.pdf - English - Instructions
- 3611003902_DRYVAC_EN_web.pdf - English - Sales Material
- 3611036902_DRYVAC_eSaver_EN_web.pdf - English - Sales Material
- 300987363_003_Instructions.pdf - French - Instructions
- 300304403_003_Instructions.pdf - French - Instructions
- 3611036903_DRYVAC_eSaver_FR_web.pdf - French - Sales Material
- 3611003903_DRYVAC_FR_Web.pdf - French - Sales Material
- 300987363_001_Instructions.pdf - German - Instructions
- 300304403_001_Instructions.pdf - German - Instructions
- 3611036901_DRYVAC_eSaver_DE_web.pdf - German - Sales Material
- 3611003901_DRYVAC_DE_web.pdf - German - Sales Material
- 300987363_004_Instructions.pdf - Italian - Instructions
- 300987363_012_Instructions.pdf - Japanese - Instructions
- 300987363_014_Instructions.pdf - Korean - Instructions
- 300987363_011_Instructions.pdf - Simplified Chinese - Instructions
- 300987363_006_Instructions.pdf - Spanish (European) - Instructions
- 300987363_026_Instructions.pdf - Traditional Chinese - Instructions
| Titulo del producto | Designación | Precio | Añadir al carrito |
|---|---|---|---|
| Permanent Inlet Purge Kit DRYVAC | 112005A32 | - | |
| Set Nozzles Purgegas DRYVAC | 112005A30 | - |
