Specifications
| Connection Vacuum Inlet Flange | DN 16 ISO-KF (NW16) |
| Connection vacuum outlet flange | 1/8" BSPP (or G 1/8") Female 6x8mm hose pushfit |
| Cooling Method | Air Cooling (forced - fan) |
| Supply Voltage | 1Ph 230V 50/60Hz |
| Power Total Rated | 120.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 8.333 × 10⁻⁴ |
| Pressure Ultimate | 10.00 |

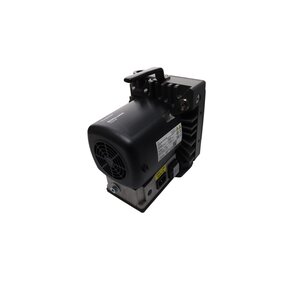

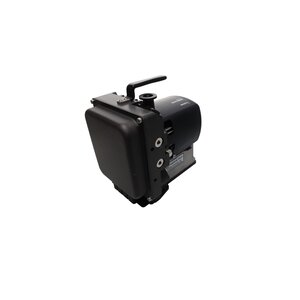

SCROLLVAC 3 plus - 230V 1Ph 50/60Hz
Part Number: 142030V330
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Variant Scroll Pumps |
|---|---|---|
| 142030V330 | standard Standard variant | |
| 142030V430 | s s - configured variant (isolation valve fitted) |
SCROLLVAC plus
The SCROLLVAC plus range of dry vacuum pumps provide a flexible, robust, and simple solution across a wide spectrum of applications. We have several variants of SCROLLVAC plus available covering pumping speeds of 3, 7, 10, 15 and 18 m3/h.
SCROLLVAC 3 plus
The Leybold SCROLLVAC 3S plus extends the Leybold range of scroll pumps, combining high pumping speed with good ultimate vacuum in a compact, flexible, quiet, and reliable package.
SCROLLVAC 3 plus - 230V 1Ph 50/60Hz
This standard variant of the SCROLLVAC 3 plus comes with a single phase 230V 50/60 Hz motor.
Features and Benefits
- CLEAN & DRY PERFORMANCE - The pump that packs plenty of punch - The SCROLLVAC 3S plus gives you all the advantages of scroll pump technology in a clean, dry, and compact package.All the clean, dry, high-performance pumping without the oil to worry about.
- VERSATILE DESIGN FOR FLEXIBLE SYSTEM BUILDING - Extending the range of advanced Leybold scroll pumps, the SCROLLVAC 3S plus is optimized for backing the Leybold TURBOVAC i range of turbomolecular pumps. Making it a great choice for small-scale R&D applications.
- COMPACT YET POWERFUL - Small on footprint, big on performance - Weighing in at just 8 kg, the SCROLLVAC 3S plus is the smallest in the range of Leybold dry scroll pumps. But don’t be fooled by its size! With peak pumping speeds of up to 3 m3/h at 50Hz (or 3.5 m3/h at 60Hz) and a typical ultimate vacuum of 0.1 mbar, the SCROLLVAC 3S plus is a very capable and dry alternative to diaphragm pumps.
General Product Information
| Connection Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Connection vacuum outlet flange |
1/8" BSPP (or G 1/8") Female
6x8mm hose pushfit |
| Connection Vacuum Inlet Flange | DN 16 ISO-KF (NW16) |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 0.231 |
| Dimension Length | 0.223 |
| Dimension Width | 0.158 |
| IP Rating | IP20 |
| Leak Rate | 1.000 × 10⁻⁵ |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 1-Ph |
| Supply Voltage | 1Ph 230V 50/60Hz |
| Weight | 7.80 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 16 ISO-KF (NW16) | 1/8" BSPP (or G 1/8") Female |
Performance Data
| Power at Atmosphere Short Term Max | 250.00 |
| Power at Ultimate | 180.00 |
| Power Total Rated | 120.00 |
| Pressure Ultimate | 10.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 8.333 × 10⁻⁴ |
| Pumping Speed Air Nitrogen 50Hz | 8.333 × 10⁻⁴ |
| Pumping Speed Air Nitrogen 60Hz | 9.722 × 10⁻⁴ |
| Pressure Ultimate With Gas Ballast | 15.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Storage Max | 70.00 |
| Temperature Ambient Operation Min | 5.00 |
| Temperature Ambient Storage Min | -30.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Scroll Pump |
Material of Construction
| Material of Construction | Anodised Aluminium, aluminium, engineering polymer inlet, stainless steel push-in adaptor, PTFE composite tip seals, stainless steel, fluoroelastomer seals plus steel, copper, hydrocarbon lubricant and chemically resistant polymers |
Variants
| Variant Scroll Pumps |
standard
Standard variant |
Operation Conditions - Limitations
| Altitude Max | 2000.00 |
