THERMOVAC TTR 91 RN - DN 16 ISO-KF

Part Number: 21L1011100

Variant

Explore the range of variants given below to compare the product

Short Description Part Number Connection Vacuum Inlet Flange Dimension Height Dimension Length Dimension Width Pressure Measurement Min Material Filament Material Exposed to Vacuum Setpoint Quantity Variant Gauges
21L1011100 DN 16 ISO-KF (NW16) 0.037 0.063 0.037 0.050 Tungsten/Rhenium Tungsten/Rhenium, Stainless steel, 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26 0 TTR 91 RN (linear analog 0-10V output, high pressure, standard version)
21L1021100 DN 25 ISO-KF (NW25) 0.040 0.063 0.040 0.050 Tungsten/Rhenium Tungsten/Rhenium, Stainless steel, 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26 0 TTR 91 RN (linear analog 0-10V output, high pressure, standard version)
21L1091100 DN 16 CF (1.33") 0.037 0.065 0.037 0.050 Tungsten/Rhenium Tungsten/Rhenium, Stainless steel, 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26 0 TTR 91 RN (linear analog 0-10V output, high pressure, standard version)
21L1211100 DN 16 ISO-KF (NW16) 0.037 0.063 0.037 0.050 Tungsten/Rhenium Tungsten/Rhenium, Stainless steel, 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26 2 TTR 91 RNS (linear analog 0-10V output, high pressure, standard version, setpoint)
21L2011100 DN 16 ISO-KF (NW16) 0.037 0.063 0.037 0.010 Platinum/Iridium Platinum/Iridium, Stainless steel 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26, PTFE 0 TTR 96 RN (linear analog 0-10V output, low pressure, corrosion resistant)
21L2211100 DN 16 ISO-KF (NW16) 0.037 0.063 0.037 0.010 Platinum/Iridium Platinum/Iridium, Stainless steel 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26, PTFE 2 TTR 96 RNS (linear analog 0-10V output, low pressure, corrosion resistant, setpoint)
21L3011100 DN 16 ISO-KF (NW16) 0.037 0.063 0.037 0.050 Platinum/Rhodium Platinum/Rhodium, Stainless steel 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26 0 TTR 97 RN (linear analog 0-10V output, high pressure, corrosion resistant)

TTR 91/96/97 RN Pirani Gauge

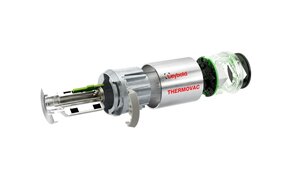

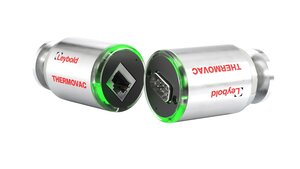

The Leybold THERMOVAC TTR - RN series gauges utilise the latest in filament pirani technology to offer robust pressure measurement. With variants to suit all needs and a bright 360 degree light ring capable of indicating pressure bands that you are operating in, it is great for both large scale OEM and small R&D style customers.

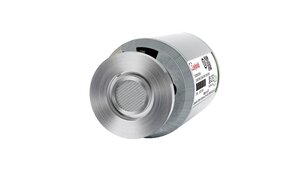

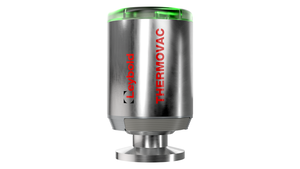

THERMOVAC TTR 91 RN - DN 16 ISO-KF

TTR 91 RN (linear analog 0-10V output, high pressure, standard version)

Features and Benefits

  • Robust filament technology with extended range option offers performance and reliability
  • LED light ring indication offers local display of pressure region away from any controller/control system
  • Compact size enables the user to reduce the overall size of a system
  • Flexible output choice makes it easy to sync with existing systems
  • Able to measure from atmosphere to 1 x 10-4 mbar

General Product Information

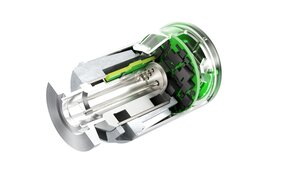

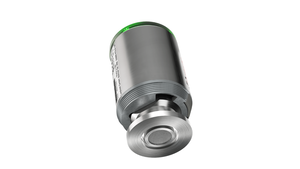

Connection Vacuum Inlet Flange DN 16 ISO-KF (NW16)
Dimension Height 0.037
Dimension Length 0.063
Dimension Width 0.037
IP Rating IP40
Supply Frequency DC Voltage
Supply Voltage DC 15-48V
Weight 0.120
Dimension Comments The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models.

Classification

Principle Of Measurement Pirani - thermal conductivity vacuum gauge

Performance Data

Pressure Measurement Min 0.050
Pressure Measurement Max 1.013 × 10⁵

Environmental Conditions

Temperature Ambient Operation Max 60.00
Temperature Ambient Storage Max 70.00
Temperature Ambient Operation Min 5.00
Temperature Ambient Storage Min -30.00

Material of Construction

Material Filament Tungsten/Rhenium
Material Body Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2
Material Exposed to Vacuum Tungsten/Rhenium, Stainless steel, 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26

Connectivity - Communication Interface

Communication Interface Protocol 1.9-10 V log linear with pressure (TTR standard)
Communication Interfaces Customer 0-10 V (analog output - linear)

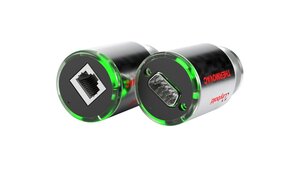

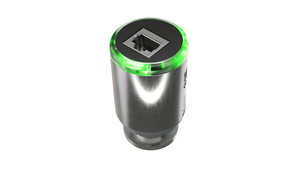

Connection electrical comms interface connector RJ45 (FCC 68) - Female
Setpoint Quantity 0
Status Indicator LED Light Ring

Operation Conditions - Limitations

Pressure Inlet Max Overpressure 1.000 × 10⁶
Temperature Baking Max (Elec. Removed) 150.00
Temperature Baking Max 60.00

Variants

Certificated Pressure Measurement None
Variant Gauges TTR 91 RN (linear analog 0-10V output, high pressure, standard version)
